Copyright Notation

Copyright © Maxphotonics Co ., Ltd ( here after referred to as Maxphotonics). All rights reserved. You may not copy, modify, transmit or publish this publication, in any form, in any media or by any means, without the prior written permission
of Maxphotonics, except as allowed under applicable copyright laws. Permitted copies shall bear the same copyright and proprietary notices that were contained on the ori ginal version.
Maxphotonics believes that the information provided is accurate and reliable; however Maxphotonics makes no warranty, representation,expression or implication that this document can be used as reference in other occasions. Furthermore, Maxphotonics does not assume responsibility for any infringement of patents or other rights of third parties due to use of the information contained in this document. Maxphotonics shall not be liable for errors contained in this document or for direct or indirect damages of relevant equipment.
Maxphotonics and the Maxphotonics Logo are registered trademarks of Maxphotonics Co., Ltd., and the Logo does not break any regulations of Trademark law.Maxphotonics grants no rights for patent or other intellectual property mentioned herein.
All information contained in this document is subject to change and revision without notice.

Company Profile

Found in 2004, Maxphotonics is one of the first fiber laser manufacturers in China. It is also the first in China to realize independent intellectual property rights and vertical integration in the core technologies of fiber lasers and optical devices. One of the national high-tech enterprises. Maxphotonics has developed
into an internationally renowned laser manufacturer that develops, manufactures and sells fiber lasers and core optical components. It is the second largest domestic fiber laser manufacturer in the domestic market.
Maxphotonics specializes in the research, development, production and sales of fiber lasers, including pulsed fiber lasers, continuous fiber lasers and direct diode lasers. It also implements pump sources, combiners, fiber gratings, isolators, laser output heads, and stripping. Optical devices such as molds, acousto-optic modulators, and pattern matchers are produced autonomously. Products are widely used in marking, engraving, cutting, drilling, cladding, welding, surface treatment, rapid prototyping and additive manufacturing processes.

CONTENT

Chapter 1 Characteristic Description …………………………………… 5

Chapter 2 General Safety Information …………………………………… 6

1-Safety Conventions …………………………………………………………… 6

2-Laser Protection ……………………………………………………………… 7

3-Reference Standard ………………………………………………………… 8

4-General Safety Instructions ………………………………………………… 9

5-Additional Safety Information ……………………………………………… 14

Chapter 3 Product Description ……………………………………………… 15

1-Features………………………………………………………………………… 15

2-Module Configuration ………………………………………………………… 15

3-Laser Modulel Designation Codes ………………………………………… 16

4-Certification …………………………………………………………………… 16

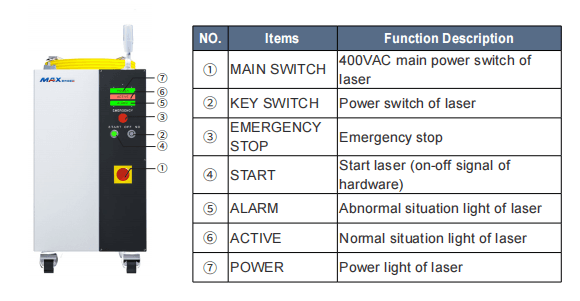

5-Front Panel Description ……………………………………………………… 16

6-Back Panel Description ……………………………………………………… 16

7-Optical Output Terminal ……………………………………………………… 17

Chapter 4 Specification ……………………………………………………… 18

1-Optical Characteristic Parameters ………………………………………… 18

2-General Characteristic Parameters ………………………………………… 18

3-Water Cooling Condition……………………………………………………… 19

4-LOE&QBH Water Cooling Condition ……………………………………… 20

5-Installation Environment Requirements …………………………………… 21

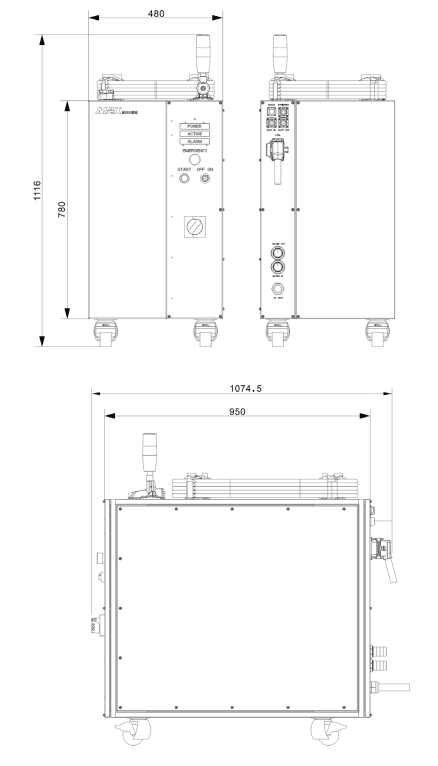

6-Structural Layout ……………………………………………………………… 22

Chapter 5 Operation Guide…………………………………………………… 23

1-Notice …………………………………………………………………………… 23

2-Electrical Power Connection ………………………………………………… 23

3-Extension Interface …………………………………………………………… 24

4-Start Step ……………………………………………………………………… 26

5-Module Description …………………………………………………………… 27

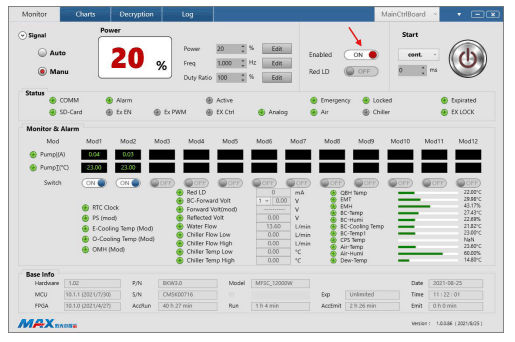

6-Software Description ………………………………………………………… 28

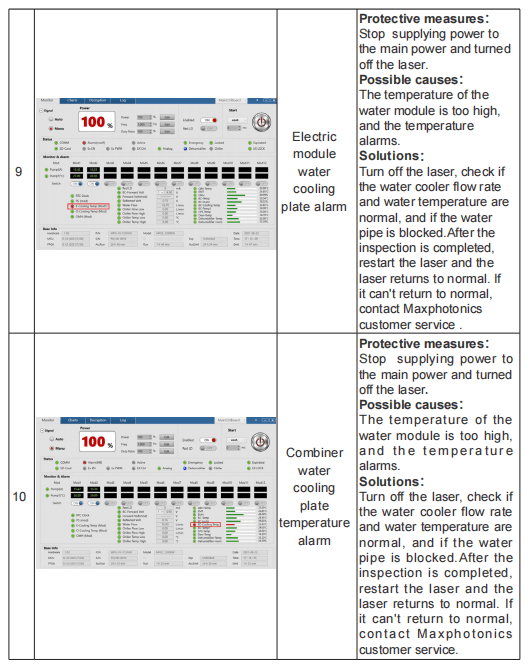

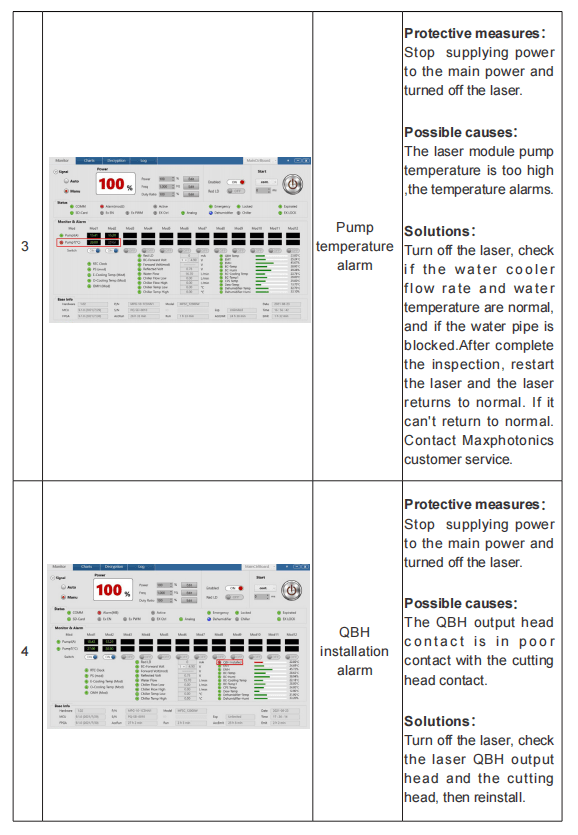

7-Error Listing …………………………………………………………………… 33

Chapter 6 Service and Maintenance ……………………………………… 38

1-Maintenance Instructions …………………………………………………… 38

2-Appearance Inspection ……………………………………………………… 39

3-Cleaning Procedures ………………………………………………………… 41

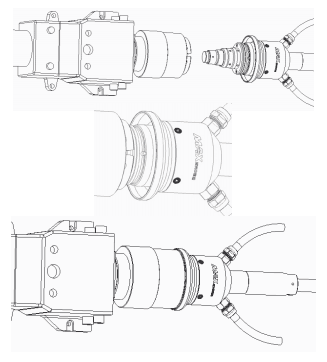

4-LOE Cutting Head Installationand Precautions …………………………… 45

Chapter 7 Disassembly Guide ……………………………………………… 47

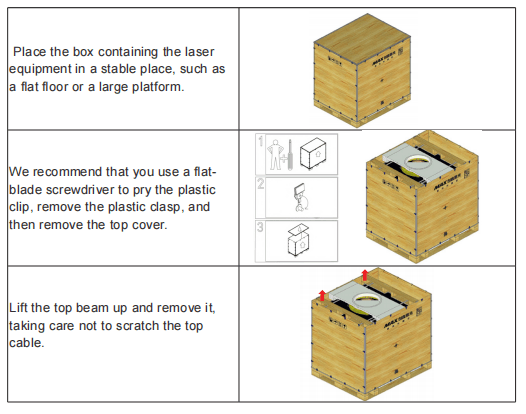

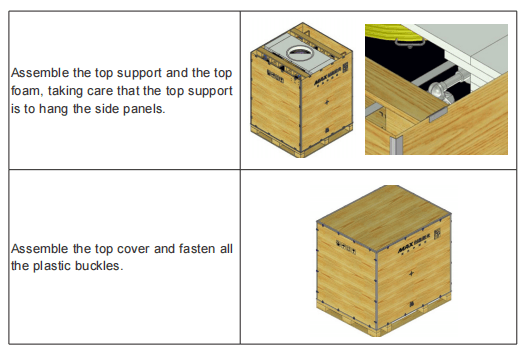

1-Unpacking Steps ……………………………………………………………… 47

2-Packing List …………………………………………………………………… 51

Chapter 8 Service and Maintenance ……………………………………… 52

1-Maintenance Notes …………………………………………………………… 52

2-Service Statements …………………………………………………………… 53

Chapter 9 Warranty Statements …………………………………………… 55

1-General Clauses ……………………………………………………………… 55

2-Warranty Limitations ………………………………………………………… 55

Chapter 1

Characteristic Description

MFSC Series CW Fiber Laser products provide a wide range of wavelength from 1060nm to 1100nm.The lasers are water-cooled and maintenance-free and

with a wall plug efficiency of more than 33% and deliver high efficiency, high reliability and high performance.

Maxphotonics’ MFSC Series CW Fiber Laser Series are Class 4 laser products and are designed and tested with safety. By following this User Guide and

applying sound laser safety practices, it will be a safe and reliable device.

Laser light exhibits unique characteristics that may pose safety hazards.

Therefore, the laser light can’t be normally associated with other light sources, and all operators and people near the laser must be aware of these special

hazards.

In order to ensure the safe operation and optimal performance of the product, please follow all warnings and safety instructions in this guide during process of

operation, maintenance and service and do not disassemble the device.

There are no serviceable parts, equipment or assemblies associated with this product for user. Lasers of unauthorized disassembly shall not be subject to

warranty.

Chapter 2

General Safety Information

1-Safety Conventions

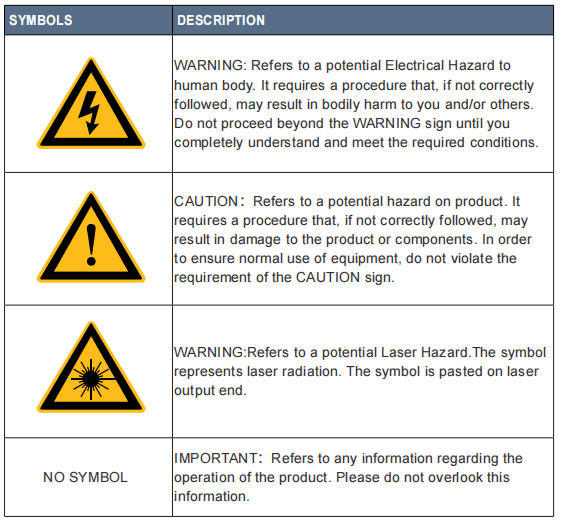

All safety warning symbols during operating process of the laser include:

NOTE :

◎ This device is classified as a high power Class IV laser instrument. It may emit up to 20KW average power from 1060nm to 1100nm. This level of light may

cause damage to the eye and skin. Laser safety eyewear is not provided with this instrument, but must be worn at all times while the laser is operational. Use

appropriate laser safety eyewear when operating this device.

2-Laser Protection

1.Laser Protection Requirements

You must wear the safety protective glasses while operating the laser, and rationally select the safety protective glasses according to the lasing wavelength

of the laser. If the device is a tunable laser or Raman product, it emits light over a range of wavelengths and the end user should confirm the laser safety

eyewear used protects against light emitted by the device over its entire range of wavelength.

2.Laser Protective Equipment Suppliers

Maxphotonics recommends material or equipments provided by following laser protective equipment suppliers for you, including LaserVision USA, Kentek

Corporation, Rochwell Laser Industries, etc. All the supplier information is provided by Maxphotonics only for the convenience to use, so Maxphotonics

assumes no responsibility for any problem caused by using the products of above mentioned suppliers.

3-Reference Standard

Electromagnetic Compatibility Emission:

EN 61000-6-4:2007+A1:2011

CISPR 16-2-1

CISPR 16-2-3

Anti-interference Performance on Electromagnetic Compatibility:

EN 61000-6-2:2005

EN 61000-4-2:2009

EN 61000-4-3:2006+A1:2008+A2:2010

EN 61000-4-4:2012

EN 61000-4-5:2014

EN 61000-4-6:2014

EN 61000-4-11:2004

Laser Security:

EN 60825-1:2014

CDRH 21 CFR 1040.10

Electrical System Safety:

EN 60204-1:2018

NOTE:

◎ Performances of Maxphotonics MFSC laser meet the CE EMC certification requirements, the EMC requirements specified in “EMC Directive” of European

market. Comply with the “EMC” standard EN 61000-6-4 emission and EN 61000-6-2 anti-interference requirements.

◎ In accordance with relevant national standards and requirements, the laser must be classified according to its output power and laser wavelength. All MFSC

Series laser products with high power belongs to Class 4 products (according to section J,1040.10 (d) of Part Ⅱ , 21 CFR).

◎ According to the standards of EU, the equipment belongs to Class 4 instrument (according to article 9, EN 60825-1).

4-General Safety Instructions

1.Specular Reflection

There are often numerous secondary laser beams produced at various angles in the output port of the laser. These divergent beams are produced when the

primary beam of laser reflects off a smooth surface, and they are called specular reflections. Although these secondary beams may be less powerful than the

total power emitted from the primary beam, the intensity may be great enough to cause damage to the eyes and skin as well as surface of materials.

WARNING:

◎ You must exercise caution to avoid/minimize specular reflections as these laser radiations are invisible!

2.Safety Instructions of Accessories

The photosensitive elements integrated in laser-related optical accessories may be damaged by laser exposure, such as: video cameras, photomultipliers, and

photodiodes. Attention should be paid to related device protection.

WARNING :

◎ The Maxphotonics MFSC laser light is strong enough to cut or weld metal, burn skin, clothing and paint. In addition, this light can ignite volatile substances

such as alcohol, gasoline, ether and other solvents. During the operating process, the flammable materials around the laser must be isolated.

3.Optical Operating Instructions

We strongly recommend that you read the following procedures before operating the laser:

1.Never look directly into the laser output port when the power is turned on.

2.Avoid positioning the laser and all optical output components at eye level.

3.Equip with laser beam casing.

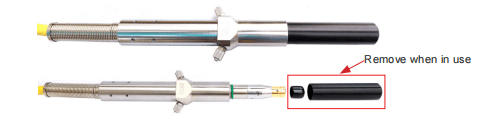

4. Make sure to remove the tail cover of the laser output head before the laser is turned on, otherwise it will cause irreversible damage to the laser fiber output head.

5.Ensure that all personal protective equipment is suitable for the output power and wavelength range of the laser.

6.Use the laser in a room with access controlled by door interlocks. Post warning signs. Limit the safety areas to operate the laser.

7.Please do not operate the laser in darkened environments.

8.Do not turn on the laser without an optical coupling fiber or an optical output connector.

9.Carry out commissioning, calibration and focusing at low output power and then increase the output power gradually when the calibrating and focusing

work is done.

10.Do not install or detach cutting heads or collimators when the laser is active.

11.Make sure that the laser is shut down and the power is off before you install or detach cutting heads or collimators.

12.If the equipment is operated in a manner not specified in this document, the protection devices and performance of the equipment may be impaired and the warranty will be voided.

CAUTION:

◎ The output of the laser is delivered through a lens with an anti-reflection coating. If the backward-stage light path of your laser has the optical lens,

please strictly inspect the lens of the output head and the backward- stage lens of the laser, and ensure that there is no dust and any other impurity on the lens.

Please note that any macroscopic attachment may cause extreme damage to lens or burn the laser or any backward-stage light path equipment.

◎ For cleaning instructions of the lens, please refer to the “Optical Fiber Connector Inspection and Cleaning Guide”.

◎ Hot or molten pieces of metal may be produced when the laser is under operation. Exercise caution if debris is produced in operation.

◎ When you carry out commissioning and calibration of the laser output, you must set the laser output at low power level and then gradually increase the

output power during checking the quality of the light spot emitted from the laser via an infrared viewer.

WARNING:

◎ Make sure that the individual protective equipment meets the output power and wavelength range of the laser.

◎ Never look directly into the optical fiber or the collimator, and make sure you wear the safety protective glasses in each operation.

4.Electrical Operating Instructions

We strongly recommend that you read the following procedures before operating the laser:

1.The power supply voltage of the laser equipment is three-phase alternating current 360-440VAC, 3P+PE. The laser equipment needs to be properly

grounded during installation and installation. The external cables of the cabinet must be placed in metal trunking or metal pipes during installation.

Pay attention to the safety of electricity during use to prevent electric shock injury.

2.When disassembling the laser, turned off the power first . If electrical injury occurs, corrective measures should be taken to prevent secondary injury. The

correct treatment process: turn off the power, release the personnel safely, call help, and accompany the injured.

3.The equipment does not have any part which can be maintained by operators, and all the maintenance operations must be finished by the professionals of

Maxphotonics.

4.To prevent electrical shock, do not remove enclosure, detach the laser without permission and damage the relevant signs. Any product with unauthorized

dismounting shall not be subject to warranty.

WARNING:

◎ The input voltage of the laser is triple-phase AC current (360-440VAC, 3P+3E), which may cause risk of electric shock. All the relevant cables and

connection wires have potential hazards.

5.Environment Conditions and Precautions

For ensuring the safety of the laser working area, suitable enclosures shall be applied, including but not limited the laser safety signs and the interlocking

devices. Corresponding operators must be trained and examined and know the normal safety specifications for operating the laser.Meanwhile, it is important

that the output components shall not be installed at eye level.

Because of interaction of the laser and the metal material, the radiation of high level ultraviolet light or visible light may be produced. Make sure that the laser

is provided with the protective cover to prevent the eyes or other parts of human bodies from damage by radiation.

We recommend that you comply with the following operating measures to

prolong the service life of the laser:

1.In order to ensure a good operating environment of the laser, reduce the risk of condensation, reduce the probability of failure, and prolong the service life.

It is strongly recommended to configure the air-conditioned room of the laser in advance. The air-conditioned room should be spacious enough to facilitate

internal maintenance. It can guarantee the minimum free space around the laser is 1.0m. If space is limited, the air-conditioned room needs to be designed to

be easy to remove and install.

2.It is necessary to provide sufficient installation space for the air-cooled water cooler, and to ensure sufficient water cooler exhaust. The minimum free space

of the top of the air-cooled water-cooled fan is 1.5m, and the side plate of the air filter is 1m away from the wall.

3.It is forbidden to place the air-cooled water-cooled machine in the laser air conditioned room. Because the air-cooled water-cooling machine discharges

a lot of hot air, the room temperature will rise rapidly, and finally the heat dissipation will be poor, causing the water-cooling machine high-pressure alarm

and laser condensation alarm.

4.Do not expose the laser to a high moisture environment.

5.The device is equipped with cooling fans. Make sure that there is sufficient airflow to cool the laser, any objects or debris that cover the ventilation holes

must be removed at all times.

6.Operation at higher temperature will accelerate aging, increase threshold current and lower slop efficiency. If the device is overheated, stop operations

and contact Maxphotonics.

7.Ensure that the work surface is properly vented. There may be gases, sparks and debris generated from the interaction between the laser and the work

surface, and they could pose additional safety hazard.

CAUTION :

◎ The device may be damaged with incautious operation.

5-Additional Safety Information

For additional information regarding Laser Safety, please refer to the list below:

Laser Institute of America(LIA)

13501 Ingenuity Drive, Suite 128

Orlando,Florida 32826

Phone:407 380 1553,Fax: 407 380 5588

Toll Free:1 800 34 LASER

American National Standards Institute

ANSI Z136.1, American National Standard for the Safe Use of Lasers

(Available through LIA)

International Electro-technical Commission

IEC 60825-1,Edition 1.2

Center for Devices and Radiological Health

21 CFR 1040.10 – Performance Standards for Light-Emitting Products

US Department of Labor – OSHA

Publication 8-1.7 – Guidelines for Laser Safety and Hazard Assessment.

Laser Safety Equipment

Laurin Publishing

Laser safety equipment and Buyer’s Guides

Chapter 3

Product Description

1-Features

MFSC Series CW fiber lasers are compact and efficient high power lasers developed for industrial application. They are mainly applied to the fields of

welding, cutting, brazing, etc.

Main Features:

1.High-quality laser output

2.High power, high efficiency

3.High reliability, long service life

4.Compact, rugged package

5.Extending programming interface

Applications:

1.Industrial applications

2.Scientific research

1-Features

2-Module Configuration

Maxphotonics offers many configurable Modules. This manual will give complete instructions for all Modules, Please refer to chapter 5 “Operation Guide”.

3-Laser Modulel Designation Codes

4 – Certification

Maxphotonics certifies that this equipment has been thoroughly tested and inspected and meets published specifications prior to shipping. Upon receiving

your equipment, check whether the packaging and accessories have been damaged in transit. If damage is apparent, please contact Maxphotonics

immediately.

5- Front Panel Description

6-Back Panel Description

7-Optical Output Terminal

1.Optical Output Head

The optical output head come with a protective window that can be replaced if damaged. Make sure that the black end cap of the QBH head is removed prior

to use and is usually arranged with the laser.

Please refer to 6“Fiber Connector Inspection and Cleaning Guide” about the cleaning method.

Optical Output Head (QBH )

Optical Output Head (LOE2.0 )

Optical Output Head (LOE3.1 )

Chapter 4

Specification

1-Optical Characteristic Parameters

2-General Characteristic Parameters

3-Water Cooling Condition

CAUTION :

◎ The Chiller needs to meet the requirements of the above table under the conditions of a circulating temperature of 40 ° C and an outlet temperature of

 22 ° C.

◎ The above recommended water pressure requires the pressure drop of the main line Δp ≤ 0.5bar. If this value is exceeded, the main circuit water pressure

should be increased accordingly.

◎ The cooling water and filter element need to be replaced once a month; before winter (referring to low temperature environment of 0° C and below), the

cooling water should be replaced with a suitable antifreeze (for example, glycol antifreeze, excessive addition is strictly prohibited, antifreeze thermal conductivity coefficient)

Low, excessive addition may cause poor heat dissipation). After the winter is over, the antifreeze should be replaced with distilled water and the filter element

should be replaced to restore the maintenance frequency once a month.

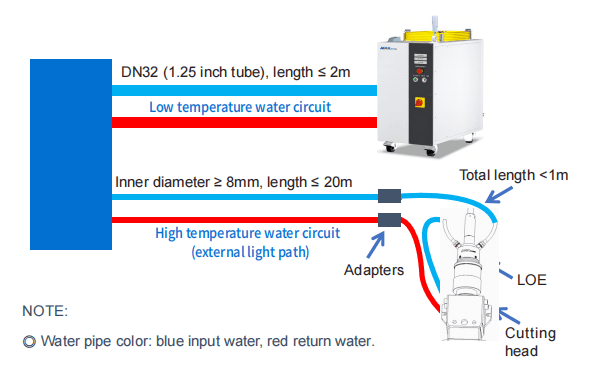

4-LOE&QBH Water Cooling Condition

CAUTION :

◎ The inner diameter of the external light path pipeline is greater than or equal to 8mm and the length is ≤20m;

◎ The total length of the Φ6 pipeline connecting QBH or the Φ8 pipeline connecting LOE from the external light path is ≤1m;

◎ QBH / LOE and cutting head connected in series

◎ For the QBH scheme, the above recommended external light path water pressure requires the pressure drop of the cutting head Δp ≤ 1.5 bar. If this value is

exceeded, the external light path water pressure should be increased accordingly.

◎ For the LOE scheme, the above recommended external light path water pressure requires the pressure drop of the cutting head Δp ≤ 3 bar. If this value is

exceeded, the water pressure of the external light path needs to be increased accordingly.

5-Installation Environment Requirements

1.The ambient air cleanliness grade requirement for optical fiber output head installation: 1000 or more stringent grade. Suggestions for Configuration of

Standard Purification Workbench;

2.laser working environment temperature:10°C–40°C;

3.laser working environment humidity:10%-85%;

4.Avoid the condensation environment,the specific control standards are as follows:

NOTE :

◎ In order to ensure a good operating environment of the laser, to reduce the probability of failure due to condensation. We recommende to prepare an air

conditioned room for the laser, so that the temperature in the air-conditioned room is ≤ 28 ° C, and the relative humidity is ≤ 50%. The water cooler should

be placed in a different space from the laser. It is forbidden to place the water cooler in the air conditioned room;

◎ The laser head works at circulating temperature. In order to avoid condensation on the laser head, it is necessary to adjust the temperature of the cooling

water of the external light path to room temperature. It is forbidden to cool the laser head with low-temperature cooling water.

6-Structural Layout

Laser Views.（Unit：mm）

Chapter 5

Operation Guide

1-Notice

CAUTION:

◎ Please refer to Chapter 4 “Specification” for proper electrical power.

◎ Please refer to Chapter 2 “General Safety Information” for inspecting whether the configuration environment of peripheral work of the laser meets the

requirements.

2-Electrical Power Connection

The power supply voltage of the optical device is 360-440VAC for three-phase

1. Make sure that the live and ground wires are correctly connected according to the line mark. Poor contact of the ground wire may cause potential damage to the laser.

For ensuring the safety feature, Maxphotonics recommends you connect circuit breaker (air switch) and Stabilizer in series between the power supply unit

and the laser. This electric power shall be in close proximity to the power supply unit of the equipment and can be easily disconnected.

If you have questions about wiring, please check the table below to determine your electrical specifications.

3-Extension Interface

WARNING:

◎ The output of laser control interface is not insulation from hazardous live part, it may result electric shock. Please make sure the equipment is power off

when perform connection. Please make sure addition insulation shall be provided to prevent against electric shock after installation.

Laser CTRL interface is a high quality 55P multi-core air interface that provides a variety of signals for functional control of the laser, as described below:

4-Start Step

WARNING:

◎ Make sure that all the electrical connections (including cooling water  connections) are connected prior to use. All the connectors must be held steady

with screws if possible.

◎ NEVER look directly into the output fiber and make sure that you wear the laser safety goggles when operating the product.

◎ Make sure all power is removed from the laser when wiring.

Starting procedures are as follows:

1. Start the chiller;
2. Remove the end cap of the collimator;
3. Check that the end face of the collimator is clean and free of debris;
4. Ensure that the emergency stop switch is turned on;
5. Set the MAIN SWITCH to the ON position;
6. Set the key switch on the front panel to the “ON” position;

7. Press the START button on the front panel.
8. Air conditioner: The system automatically controls the switch of the air conditioner. The air conditioner will start to cool after 3 minutes. If the air

conditioner is not cooled after 3 minutes, the air conditioner is faulty (if the laser is matched with an air conditioner).

5-Module Description

The working Modules of the laser are as follows:

1.Continuous Module: the emitted light is continuous and can be used for cutting;

2.Pulse Module: The emitted light is pulsed. When the pulse frequency is greater than a certain value, the actual application is used to control the average

output power of the laser (pulse width adjustment, when the external control, the modulation signal corresponds to the Module);

3.External control: specific parameter settings through the board software interface.

External Control Signal Timing:

Timing specific description: Power analog quantity 0-10V signal is provided to the laser at least 20mS ahead of time, modulation and enable high level signal

input, red light off, laser output. Enable high level signal reduction, red light output, laser off.

6-Software Description

(1) The installation program is stored in the U disk that is randomly packed (the software version is not updated regularly, subject to the official website

announcement).

(2) Unzip NET4.6.rar to get NET46-x86-x64-AllOS-ENU.exe. Double-click to run to install the operating environment (Win10 system or systems with .NET

4.6 installed can skip this step).

(3) Decompress the G3-Series (Maxphotonics)-1.0.0.86.rar file to obtain G3-Series (Maxphotonics)-1.0.0.86.exe. Double-click to run to complete the

monitoring software installation wizard (the one marked with “zh” is the Chinese wizard, and the one marked with “en” is the English wizard).

(4) After the installation is complete, a shortcut will appear on the desktop.

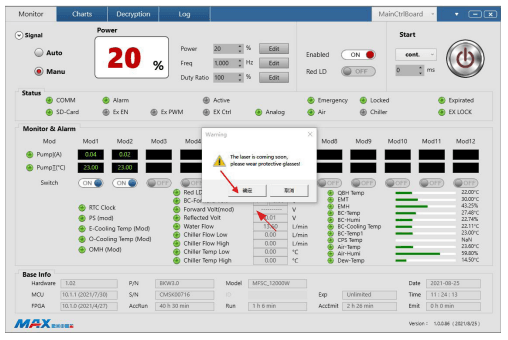

(5) Double-click the desktop shortcut to open the application and enter the following connection interface.

(6) Connect the laser and PC with the serial port cable that comes with the random connection, select the port number, log in to the laser, and enter the

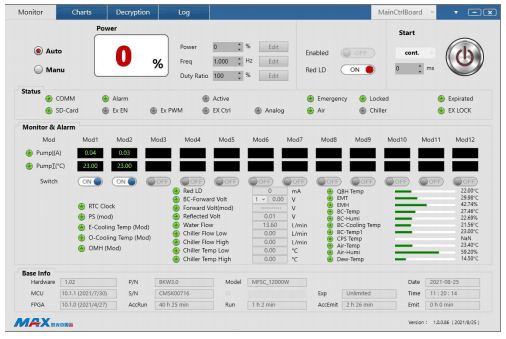

following monitoring interface. Note: When entering the monitoring interface, the system selects the external control Module by default. External modulation/

enable/DA signal control.

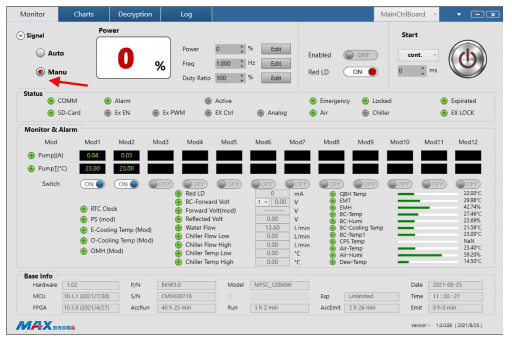

(7) The internal control Module controls the laser. (Click to select internal control Module).

(8) Edit & set the laser power / frequency / duty cycle.

(9) Click to enable the host computer enable signal.

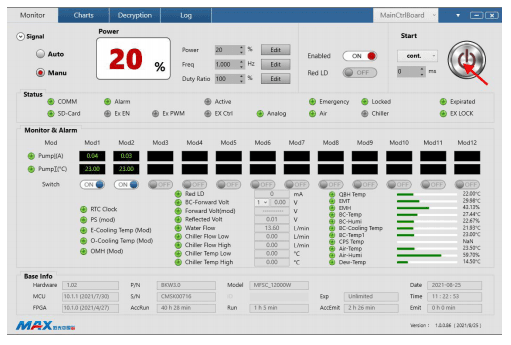

(10) Click to turn on the upper computer laser start button.

(11) Click “Yes” in the prompt box to turn on the laser.

(12) Decryption interface.

Tip: For details on the software installation and usage instructions, refer to the software manual in the U disk.

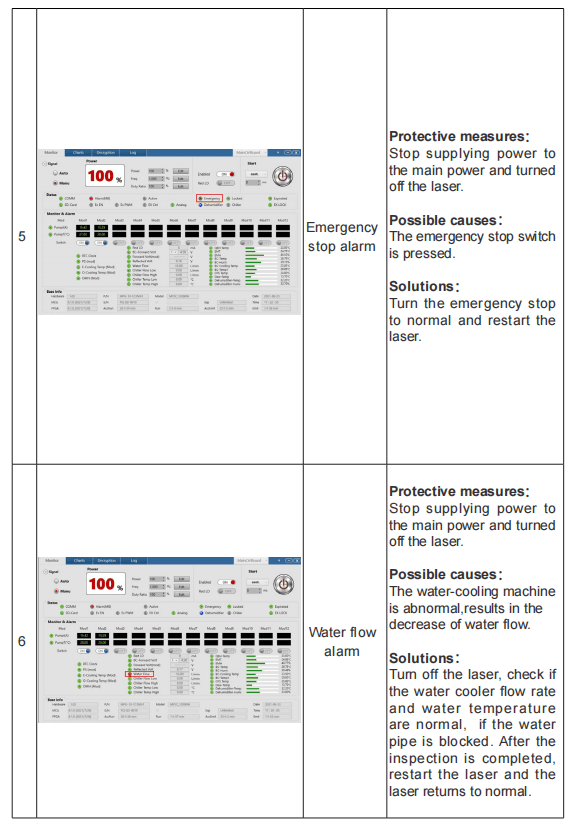

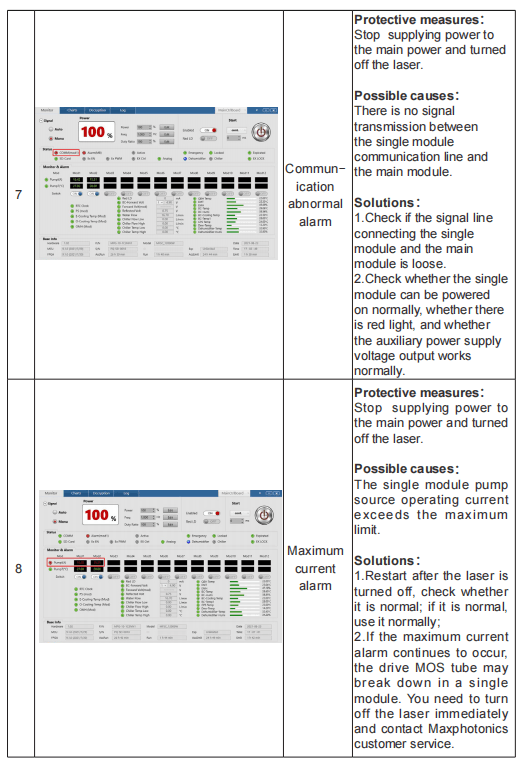

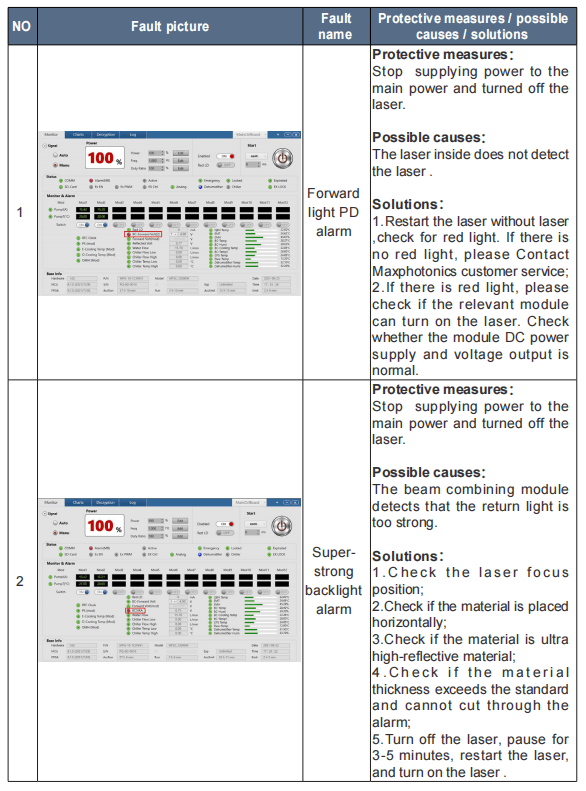

7-Error Listing

The fault alarm points set by the laser include:

NOTE：

◎ All laser alarm information, there will be corresponding display reminder on the monitoring software: please pay attention! If you have any questions, please

contact our customer service staff.

Chapter 6

Service and Maintenance

1-Maintenance Instructions

Before connect the laser fiber connector, it is necessary to check the dust, dirt adhesion and damage of the end face. Using dirty or unclean fibre optic

connectors can cause serious damage to the laser. Maxphotonics does not take any responsibility for laser damage caused by using unclean optical

fiber connectors. If the optical fiber connector is tampered with privately, the equipment will no longer in guarantee.

For cleaning a fiber connector you need the following materials:

1.Powder-free rubber gloves or fingerstall;

2.Lint free optical cleaning wipes and/or swabs;

3.Ahydrous ethanol (Optical level, purity >99.5%);

4.Compressed air (no oil, no water), or a wooden rod rolled with a double-layer adhesive tape;

5.Scale microscope (can be enlarged by 20 times and above).

IMPORTANT：

◎ It is imperative that you wear powder-free rubber gloves during this cleaning procedure! It is hereby stated that damage to the fiber connector can occur

due to mishandling, the use of incorrect cleaning procedures, or chemicals for cleaning. This is not covered by the Maxphotonics’ warranty.

2-Appearance Inspection

1.Environmental requirements

LOE cleaning and installing cutting head shall be carried out in the clean room purification workbench,the dust-free grade requires 1000 grades, and the

reference cleansing workbench as follow:

2.Operating Procedures

1.Switch off the laser power, and place the key switch on position of ”OFF”;

2.Rotate the black protective sleeve of the connector clockwise, place it under a 20x microscope and make the surface to be inspected clear, and check

whether the appearance of the quartz rod meets the appearance standard. (referrence2.2.5);

3.If there is no dust particles, or the dust particles meet the appearance standards, put the black protective sleeve to return the connector;

4.If it is found that the dust particles exceed the appearance standard requirements, then clean them according to the requirements of step 3;

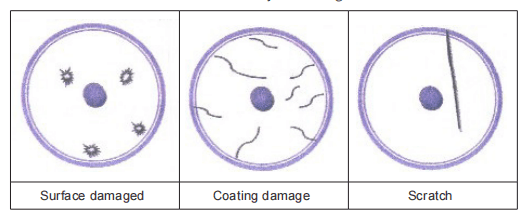

5.Appearance standards are shown in the table below:

Unit：mm

3-Cleaning Procedures

1.Switch off the laser power, and place the key switch on position of ”OFF”

2.Cleaning protective lens with swabs

1.Rotate the black protective sleeve of the connector clockwise, place the inner or outer surface under a microscope of 20 times and make it clear. After

careful observation, determine the specific position of the dust particles, open the alcohol bottle cap and gently press the alcohol bottle mouth makes a small

amount of alcohol ooze out, completely immerse the round cotton swab in alcohol, and then lightly swab the cotton swab to remove excess alcohol. Use a

cotton swab to wipe the dust particles straight in the direction of the operator’s body. The force should be light. After each wiping, the cotton swab can be

rotated 180° and then wiped with the other side. After wiping for 2 times, the cotton swab is scrapped. Note that it is not allowed to circle. Or wipe back and

forth to prevent dust particles from contaminating other areas or cotton swabs directly scratching the surface.After all cleaning, it is necessary to observe

under the microscope again whether the surface is clean.

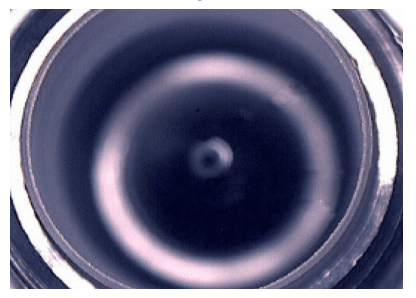

Actual image of the fiber

Quartz rod

Endface may be damaged

2.Check the inner wall of the protective guide tube if there is obvious foreign matter with the microscope. If the foreign matter can be cleaned with a double

sided glue stick, then use a cotton swab to wash the alcohol for further cleaning.

After the protective guide tube is dried, directly put on the connector.

3.Cleaning method for quartz rods

If find that the internal quartz rod is dusty or dirty, you can open the lens to clean

1. The specific steps are as follows:

1.Rotate the black protective sleeve, dust cap and protective lens at clockwise, first wipe the circumference and thread surface of the entire connector lens

piece with an optical cleaning cloth and alcohol;

Remove the fiber protection sleeve and inner protective cover

2.Put the quartz rod under a 20x microscope and make it clear. After careful observation, determine the specific location of the dust particles and clean

according to the method of 3.2.1. For dust particles on the side of the fused quartz rod, use a pointed cotton swab to clean along the circumferential surface.

After all cleaning, confirm under the microscope whether it is clean, including the chamfered area. Finally, wrap it on the table with a non-woven fabric, and

then continue other work to prevent the dust from contaminating the end face and side of the fused silica rod again;

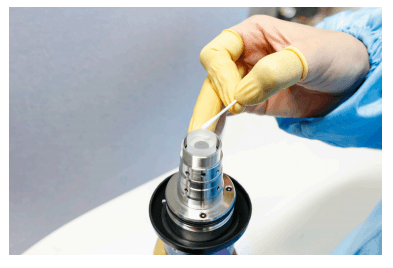

Cotton swab to wipe quartz rod

3.Along the grain of the surface of the metal part, gently rotate the lens piece back to the metal part and confirm that it is in place. Place the black protective

sleeve on the connector.

IMPROTANT：

◎ Do not reuse a lint-free optical wipe or swab;

◎ Do not touch the protective lens of the fiber connector;

◎ Do not blow directly, or else new dirty will be brought;

◎ Do not touch the tip of the cleaning swab with your fingers;

◎ Cleaning is necessary before place the protective cover and sleeve;

◎ Never blow air directly at the surface, because you could imbed contaminants into the surface. Always blow across the surface;

◎ If the fiber connector could not be installed in optical system immediately, please cover it with the protective cap cleaned with compressed air;

◎ Be sure to operate in a Class 1000 clean environment.

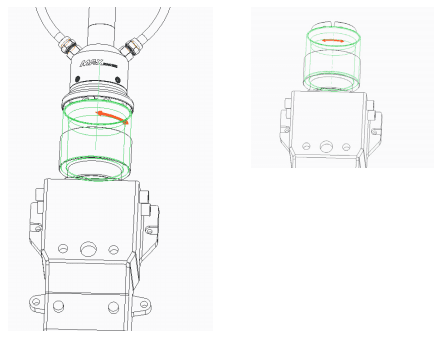

4-LOE Cutting Head Installationand Precautions

1.Installation steps

1.The LOE female head is fixed to the cutting head, and the LOE female head is rotated clockwise to the fixed position;

2.Insert the cleaned LOE male into the corresponding female fixed slot position.

To avoid dust pollution on the LOE end face and the inside of the cutting head, please ensure that the LOE and the cutting head are in the horizontal state;

3.Turn the male clockwise to a fixed position.

2.IMPORTANT

◎ LOE male head lens must be removed before inserting the female head;

◎ After removing the lens, it is necessary to clean the quartz rod and the thread of the fixed lens member;

◎ LOE male insert female head must be centered to prevent damage to the quartz rod;

◎ The entire operation process needs to be performed in a 100-level dust-free purification environment.

Chapter 7

Disassembly Guide

1-Unpacking Steps

The laser belongs to the precise valuables, so Maxphotonics recommends the following steps to unpack the packing box. Packing list is attached to the box.

After unpacking, please check the accessories according to the Packing List.

Please also save all the items after unpacking to prevent future transportation or storage.

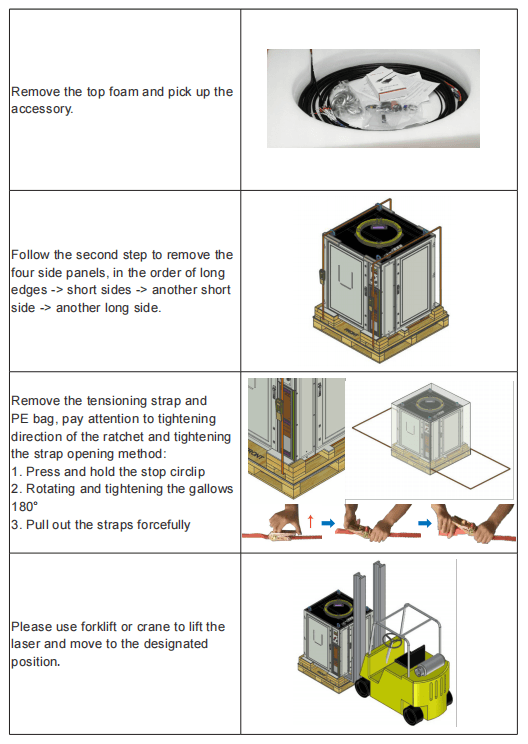

The following picture shows the steps to remove the box:

Packing box disassembly and assembly

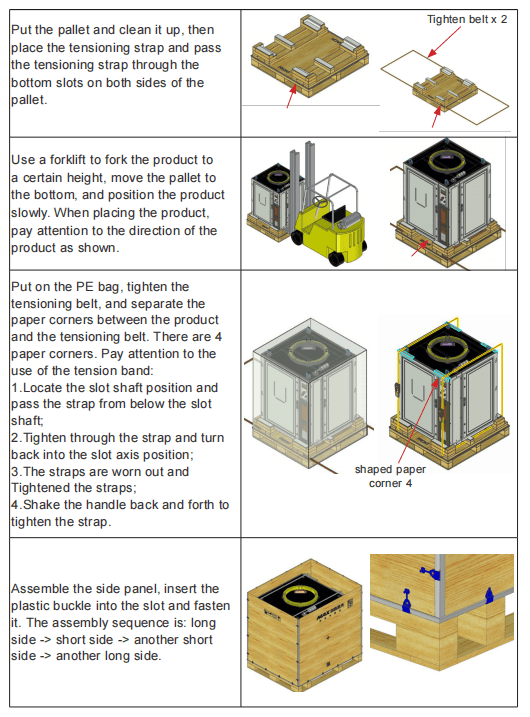

When customers need to repack, please refer to the following steps.

NOTE:

◎ If you find any damage to the outer packaging or internal components after received the product, please contact Maxphotonics or your local representative

immediately.

◎ The laser is equipped with a dehumidifier. When the ambient temperature and humidity are too high, the laser will have a process to prevent dew

condensation and dehumidification (about 30 minutes). The condensed water will flow out from the bottom outlet of the cabinet.

◎ When turned off the laser, the water cooler should also be turned off to prevent condensation from occurring due to excessive temperature difference.

RECOMMENDATION:

Change the operating temperature or humidity of the laser to keep the laser away from the dew point. (such as installing the laser in an air-conditioned room)

2-Packing List

Chapter 8

Service and Maintenance

1-Maintenance Notes

CAUTION :

◎ No operator serviceable parts inside. Refer all servicing to qualified Maxphotonics personnel.

◎ For ensuring that the repairs or replacement within the warranty scope can be carried out, and perfectly maintaining your interests, please submit application

to the Maxphotonics or the local representative after finding the faults. Upon receiving our authorization, you need to pack the product in a suitable package

and return it.

◎ You should keep the proof when finding any damage after receiving the product, so as to claim the rights to shippers.

IMPORTANT :

◎ Do not send any product to Maxphotonics without RMA,otherwise it will be returned according to rejection. The resulting losses are borne by the customer;

in order to ensure the timely processing of the returning machine, the customer must ship the faulty machine to the designated address of Maxphotonics.

◎ If the product is beyond the warranty period or the warranty scope, customers shall be responsible for the repairing cost.The specific charges include spare

parts costs, labor service fees, and travel, accommodation and other expenses incurred by on-site services.

CHANGE :

◎ We have the rights to change any design or structure of our product, and the information is subject to change without notice.

2-Service Statements

More problems regarding the safety, set-up, operation or maintenance please reading this “User Guide” carefully and flowing the operation steps stictly.

Please call the Customer Service Department for other questions.

1.Fault repair and consultation methods

(1) 7X24 hour service hotline: 400-900-9588; 1 business consultation; -> 2 after-sales service; -> 3 pre-sales support; -> 4 complaints suggestions; -> 5 front

desk consultation;

(2) Online registration of Wechat public account: pay attention to Maxphotonics Wechat public account, choose online repair;

2.Customer repair and consultation need to prepare information in advance

(1) Laser Modulel PN: as shown on the right;

(2) Laser SN code: as shown on the right;

(3) Description of fault;

(4) Customer company name, address, contact person and contact number.

The questions you have feedback will be followed up by the technical support team after confirmation by Maxphotonics Customer Service. If your problem is

still not resolved after communicating with the technical support team, you may need to send the product back to Maxphotonics for further investigation.

Chapter 9

Warranty Statements

1-General Clauses

Maxphotonics Co.,Ltd. carries out warranty for any defect of the product caused by its material and production technology within the warranty period agreed

in contract, and ensures that its product meet the relevant quality and specification requirements specified in the document under normal use condition.

Maxphotonics Co.,Ltd. rationally determines to repair or replace the products with faults caused by its material or production technology within the warranty

period, and repairs or replacement of all the products within the warranty scope are carried out according to the rest of the warranty period of primary

products.

2-Warranty Limitations

Under the following circumstances, the products, parts (including the fiber

connectors) or equipment are not within the warranty scope:

（1）Tampered, opened, detached or reconstructed by personnel outside

Maxphotonics;

（2）Damaged from misuse, neglect or accident;

（3）Used beyond the specification and technical requirements of the product;

（4）Indirectly damaged from users’ software or interfaces;

（5）Improper installation or maintenance, or operating under conditions not included in this manual;

（6）The fittings and the fiber connectors are not included in the warranty scope.

Customers are obligated to understand the information above and operate according to the User Guide and specification, or the faults arising therefrom are

not included in the warranty scope.

IMPORTANT:

◎ Within the warranty scope, purchasers must feed back within 31 days after finding the product defect.

◎ Maxphotonics does not grant any Third Party rights to repair or replace the parts, the equipment or other Maxphotonics products.
