KRRASS Handheld Laser Welding Machine

Fiber Laser Welding is a welding technology used to create a strong joint between several metal components with fiber laser. Fiber laser produces a beam of high-intensity that is concentrated into one spot. This concentrated heat source enables fine, deep welding with high welding speed. KRRASS handheld fiber laser welding machine is used to weld metal plates and metal tubes.

Welding Thickness

The above data is based on the triangular light spot.

Due to the difference of the plate and labor,please refer to the actual welding.

CNC Control System

High Efficiency

Increased by 2 to 10 times

High Quality

Smooth welding seam, no subsequent grinding needed

Low Cost

Spare at least 2 welders 80% to 90% power saving

Laser welding source selection

Double wobble weld head technology

Double pendulum laser welding head can weld aluminum materials

It can perfectly replace some traditional argon arc welding and electric welding in the welding of thin stainless steel plate, iron plate, aluminum plate and other metal materials;
Light weight, small size, ergonomic design and comfortable grip;
The operation is easy to get started, and the requirements for operators are extremely low;
Beautiful welding seam, fast speed, no welding marks, no discoloration, no need for later polishing;
Strong anti-interference.

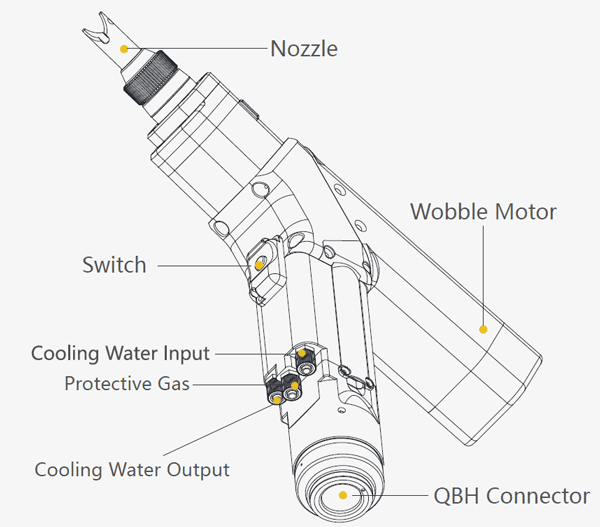

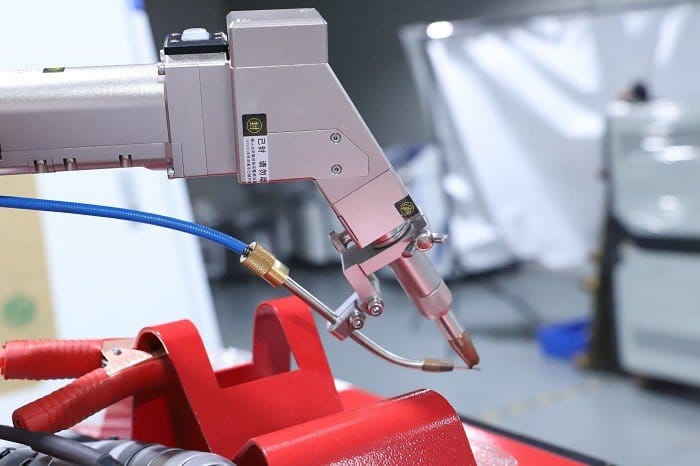

Laser welding head

Infrared Precise Positioning

With welding head position proof-reading and welding position verification function, the welding position is more accurate, and the welding seam is smooth and beautiful.

Laser welding head krrass

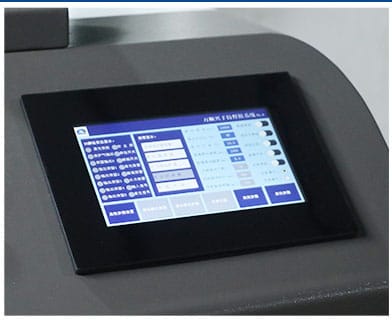

ontrol system

The control system come with a few kinds of mode,CW model, PWM model Arc model.The control screen directly digitally sets the parameters of the wire feeder;
The system monitors the operating status in real time, monitors and collects the operating status of the laser, chiller, and control board;
Support Chinese, English, Korean, Japanese, Russian, French, Spanish, Israeli language systems

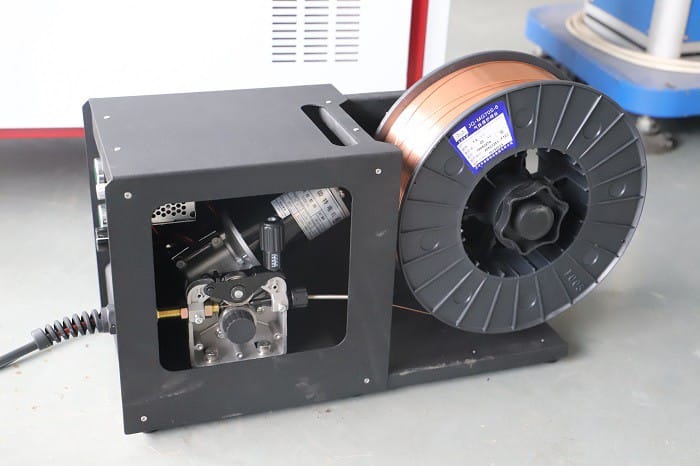

Wire Feeder

1000W and 1500W support 0.8mm 1.0mm 1.2mm wire, 2000W support 0.8mm to 1.6mm.
Wire send and back speed adjust through touch panel.
If two weld metal gap more than 0.2mm that need filler wire。

Wire Feeder

Technical Parameter of KRRASS Fiber Laser Welder

​​​​​​​​​​​​​​As the laser welding equipment manufacturer, KRRASS supply 1kw/1.5kw/2kw fiber laser welding machines for sale.

               Model                       handheld laser welding machine
Laser Power(kw)1/1.5/2
Welding Speed(mm/s)≤120mm/s
Welding range(mm)0.5~4 carbon steel; 0.5~4stainless steel; 0.5~3 aluminum
Fiber Length(m)Standard 10
Cooling ModeWater cooling
Electromechanical380V/50HZ  220V optional

6 Main Features of KRRASS laser welder machine

High Efficiency

Increased by 2 to 10 times

High Quality

Smooth welding seam, no subsequent grinding needed

Low Cost

Spare at least 2 welders
80% to 90% power saving

360 degree flexible movement
welder with no experience can do a good job


6 welding mode with or without wire
function as cutter for thin steel

Language support for Chinese, English, Korean, Japanese, Vietnamese, Russian, Spanish
Localized for customers all over the world

How does a KRRASS Laser Welding Machine Work?

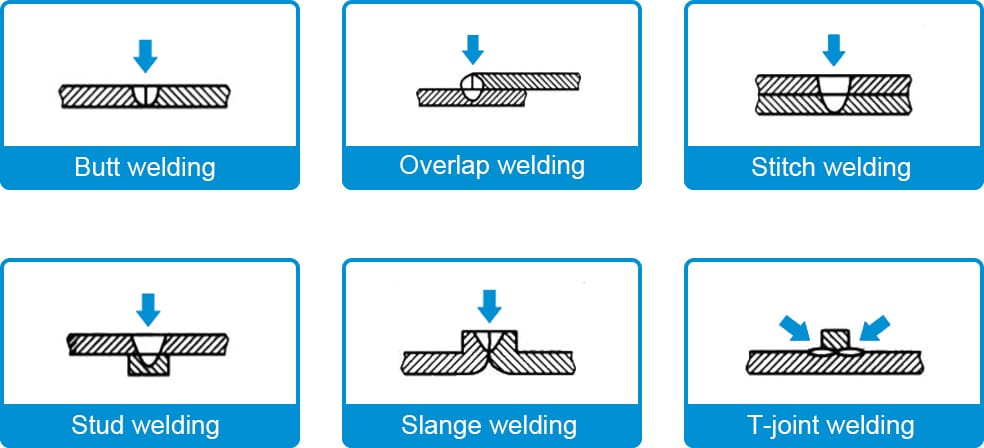

Hand-held laser head is light and portable. It can weld any part of the workpiece, and has various welding methods such as butt welding, stack welding, tailored welding. More information about using the laser welding machine, please go to read this Precautions for Laser Welding

Equipment Using Advantages

√ Easy to operate for both beginners and professionals to save your labor cost!
With the help of visual touch scree, the machine operation is simple and convenient, which will save your time on personnel trainning and save your budget on operator recruitment. Also, the hand-held fast positioning welding process requires no need to move the workpieces to improve working efficiency.

√ No deformation and rupture, causing no harm to your materials!
Fast laser welding technique to connect and stick the seams efficienctly, which cause no structure distortion to your design and style!

√ Clean and hygienic work, make your work environmental-friendly!
Use the laser to melt down the metal so to realize welding, this hand-held laser welding machine works with no smoke, glare and ultra-low noise. And regardlessof the metal size, it can always process well accurately and efficienctly.

Comparison itemLaser weldingArgon arc welding
Welding methodSpot welding or continuousSpot welding
Applicable materialsStainless steel, carbon steel, galvanized sheet,aluminum, etc.Stainless steel, carbon steel, galvanized sheet
Thickness requirements0.5—4mm1—12mm
Workpiece deformation/undercutSmallBig
Welding speed0—8m/min0—1m/min
Subsequent processingLight or no sandingNeed polishing
Operation difficultySimpleComplex
Safety and environmental protectionRelatively safe and environmentally friendlyNot safe and environmentally friendly
Labor costsGeneral workers (can operate after simple training)Professional welder
Wearing partsLens, nozzleArgon

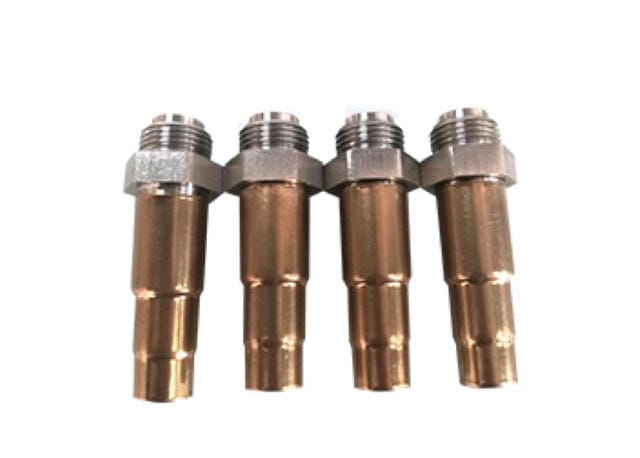

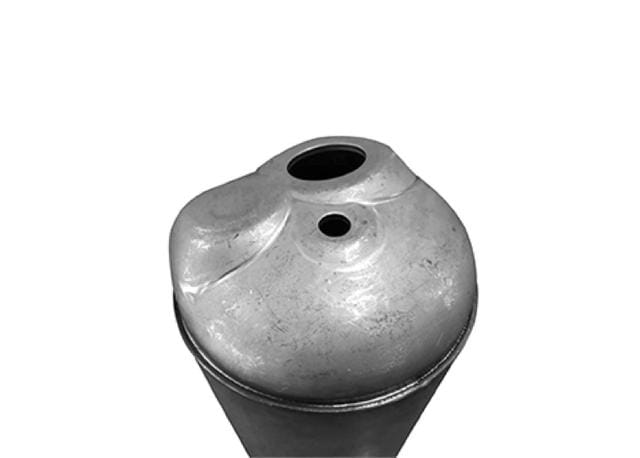

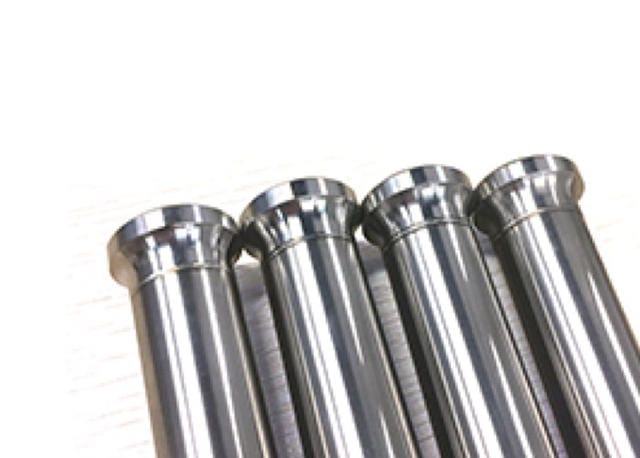

Laser welding can be applied to various metarials like titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, as well as steel, Kovar and other alloys. Various dissimilar metals is also available, such as copper-nickel, nickel-titanium, copper-titanium, titanium-molybdenum, brass-copper, and low carbon steel-copper. At the same time, the welding machine is widely used in industries of mobile phone communications, electronic components, glasses and watches, jewelry, hardware products, precision equipment, medical equipment, auto parts, craft gifts and other design areas.

If you want a price, fully catalogue or other informations, pls contact us
