Hydraulic Ironworker Machine

KRRASS Iron Worker Machine

KRRASS Ironworkers are designed with multi-functions to save labor, time, energy and cost. This versatile aspect allows the KRRASS Ironworkers to meet the diversified needs of the metal fabricating industry. Currently, KRRASS has the highest reviews of any ironworker brand on the market today.

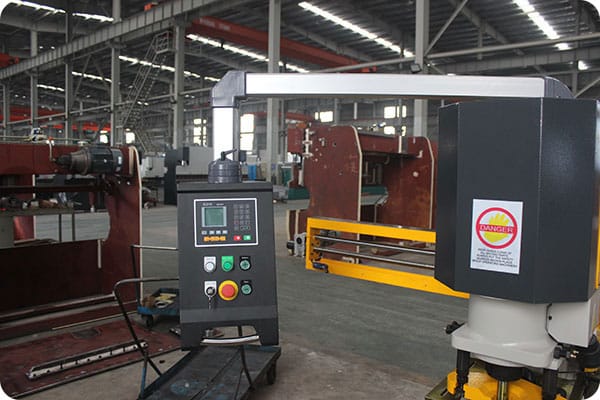

CNC Control System

Top performances allow to accurately and cost-efficiently cut pieces in high volumes.

Proportional oil hydraulic circuit has been completely designed by KRRASS. It is optimized for every guillotine shear size, with high-quality and reliable parts.

QC11K-Cut guillotine shear is available in a wide range of models and powers. Length and shearing thickness can be customized to the highest levels in the category.

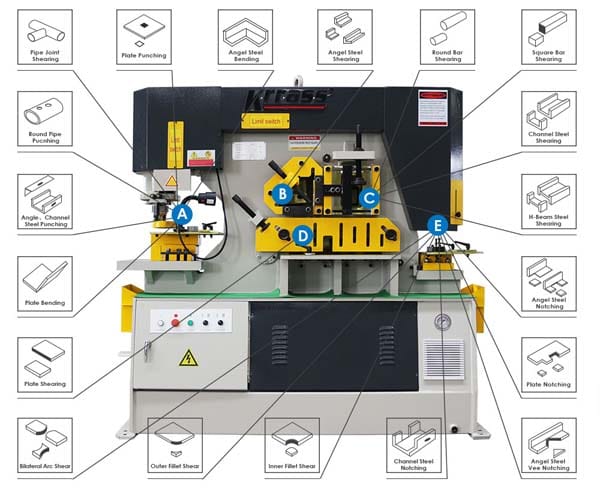

Standard Equipment

Punching station

All metal punching operations are processed by means of hydraulic power, thus giving the machine the ability to punch very efficiently and silently. The machine can either be used to punch thick metal or thin materials layered together. Punching is silent, powerful, and efficient. The waste materials come off together and in layers. The punching table consists of two parts: the first is the punching flange; the second is the holder. The holder is a device that prevents the material from coming back with the punch after cutting. There are different holders for different materials.

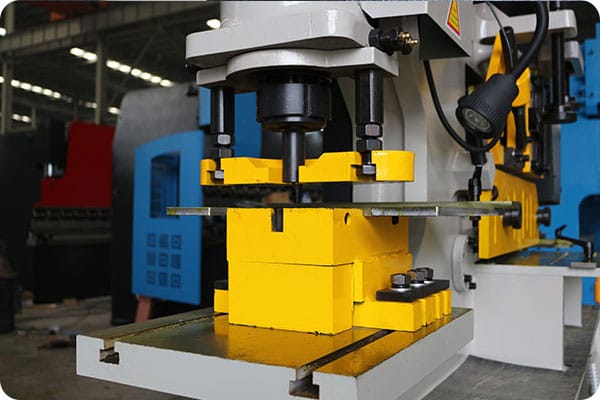

Ironwoker Machine Punching

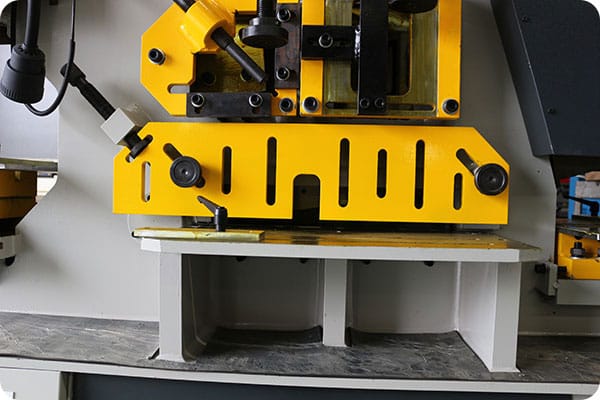

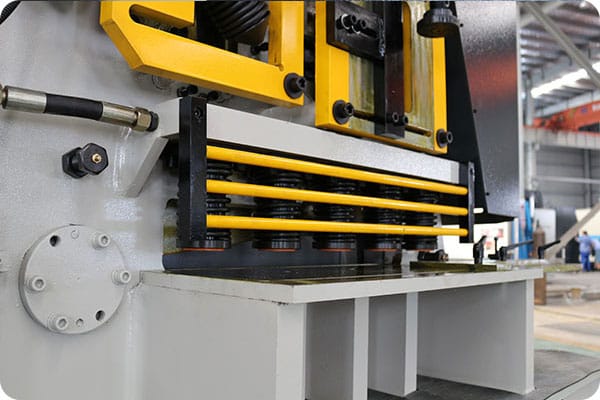

Flat bars shearing station

The metal shear station has been equipped with simple and sturdy fixing mechanisms that can be adjusted for any steel thickness depending on the cutting capacity of the machine. The shearing capacity can go up to 17.71 inches in the flat bar or the cutting of corner profiles. The shearing blades, built for mass production, can be used on both sides (the upper blade has 2 cutting edges, the lower blade has 4 cutting edges). This ensures a clean cut with minimal warping, from the full capacity down to a thickness of only 1/8 inch.

Bars cutting station

Standard machines are equipped with blades for cutting U-sections. Thanks to additional equipment, it is possible to cut I-section profiles and T-sections and round and square metal bars. The blades are held by efficient jaws that ensure the equipment can be arranged easily at the machine without any additional adjustment.

Ironworker U-shaped steel shear

Notching station

High Adaptability:With QBH, QCS and other types of optical fiber interfaces, it can be adapted to various mainstream laser devices.Excellent Design:Optimized optical configuration, smooth and efficient air flow design significantly improve cutting quality and efficiency.

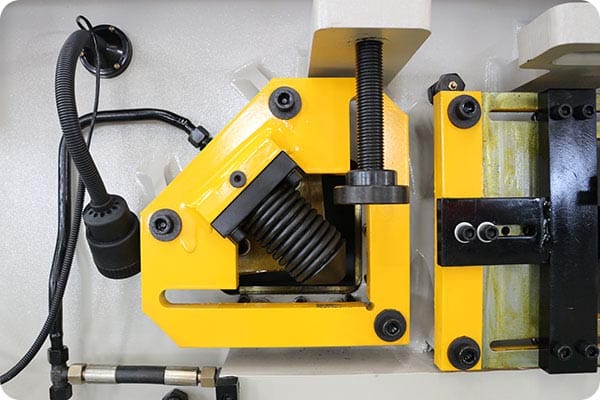

Angle shearing station

This station enables the cutting of large angles with a capacity ranging from 17 3/4 inches to 35 1/2 inches.

Ironworker Angle steel shear

Optional Equipment

Angle steel,channel steel ,round steel automatic positioning shear

Shear plate automatic hydraulic clamping

Angle steel shear automatic clamping

Technical Parameters of Ironworker Machine

Technical SpecificationQ35Y-12Q35Y-16Q35Y-20Q35Y-25Q35Y-30Q35Y-40Q35Y-50
Punching Pressure(T)35T60T90T120T160T200T250T
Depth of throat(mm)115300355400600600600

























Standard
Die











Punching

Dia.X Max.Thicknessmm25X1225X1630X2035X2538X2640X3540X40
Dia.X Thicknessmm25X1225X1630X2035X2538X2640X3540X40
Max.Diametermm12253035384040
Travelmm35808080808080
Working TravelmmX18X20X25X25X30X35X40
Throat Depthmm115300355400600600600



Steel Bar

Roundmm35455060657080
Squaremm30X3040X4050X5050X5055X5560X6065X65





Steel
Angle

Angle Sizemm86X86X8125X125X
12
140X140X
12
160X1160
X14
180X180X
16
200X200X
18
200X200X
20
Cutting Angle°50X50X550X50X550X50X560X60X660X60X6100X100X
10
120X120X
10
Angle Sectionmm5.55.56.5911.51212





Slotting

Thicknes
s
mm100126160210280300320
Widthmm30536075868992
Depthmm











Optional Die

U-I
Shaped
Profile
 mm100X100X8125X125X12140X140X12160X160X14180X180X16160X160X14180X180X16
T-shaped
Profile
 mm40X40X660X60X870X70X1080X80X1080X80X1080X80X1080X80X10
I-Beam mm40X60X4126X74X5160X86X6200X102X
9
280X124X
10.5
300X126X
11
320X130X
10
V-BendingLengthmm600600600600600600600
V-BendingThicknessmm4101520263340
VoltageKn3506009001200160020002500
Motor Powerkw45.57.5111518.518.5
WeightKg160019002500520068001100014500

Outline Dimension(LXWXH)

mm950X950X
1800
1640X730
X1770
1860X800
X1990
2355X960
X2090
2680X104
0X2300
2970X124
0X2350
3000X144
0X2450

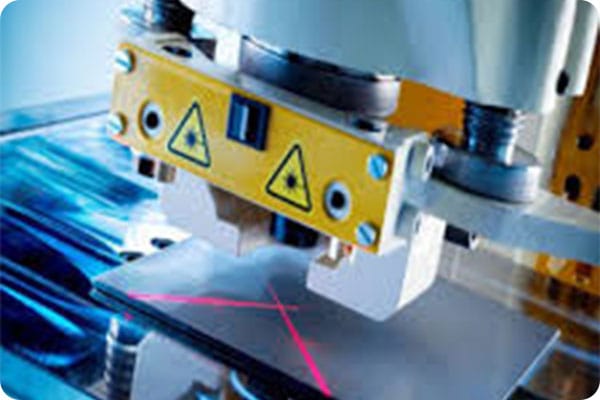

Ironworker Machine Red dot alignment

Laser positioning

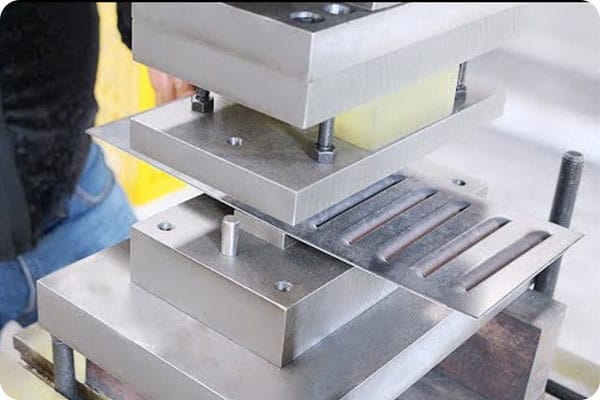

Louver punching

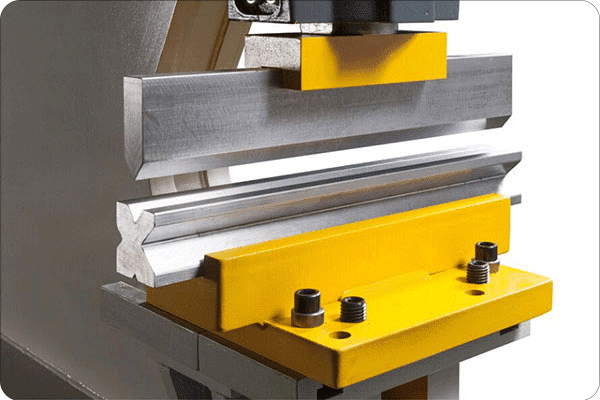

Bending
