Table Type Plasma Cutter Machine

KRRASS Table Type Plasma Cutter Machine

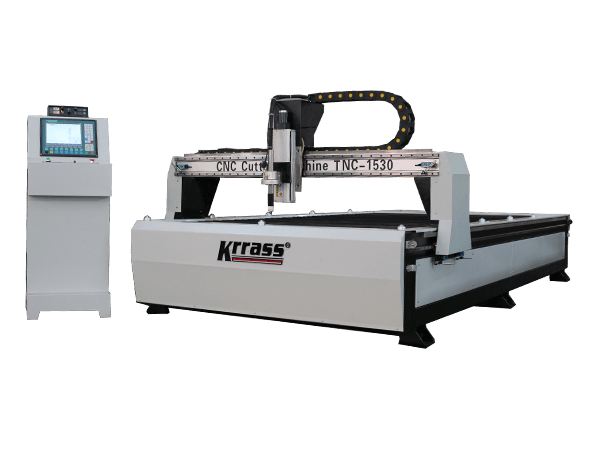

P-Series Plasma machines are used for cutting thick metals, It is a reliable and robust plasma source. Hypertherm cutting head, CNC control unit and power source provides precise and high quality cutting. P-Series Plasma machines are designed for precision cutting, High Performance, High Speed It can be equipped with Pipe cutting, 5 axes beveling head, multi plasma heads and Oxy cutting heads.

CNC Control System

Top performances allow to accurately and cost-efficiently cut pieces in high volumes.

Proportional oil hydraulic circuit has been completely designed by KRRASS. It is optimized for every guillotine shear size, with high-quality and reliable parts.

QC11K-Cut guillotine shear is available in a wide range of models and powers. Length and shearing thickness can be customized to the highest levels in the category.

Standard Features

Optional Features

Technicial Specifications

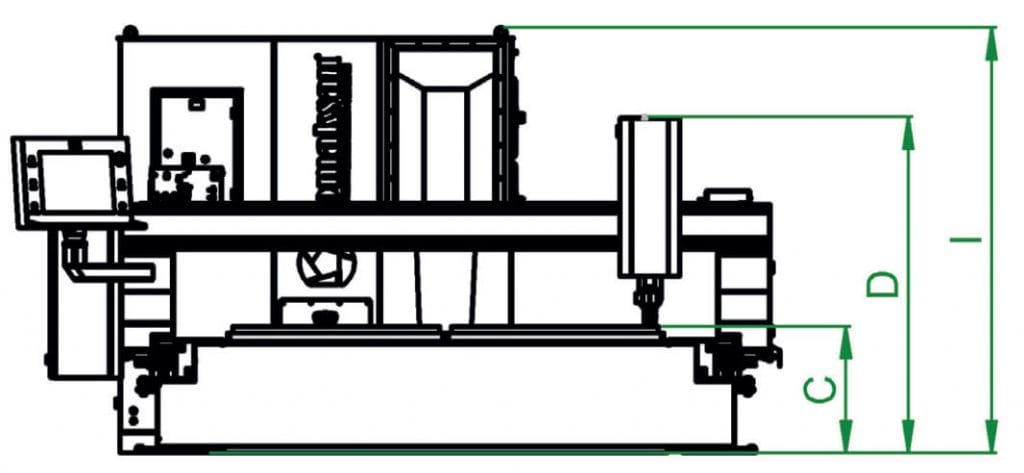

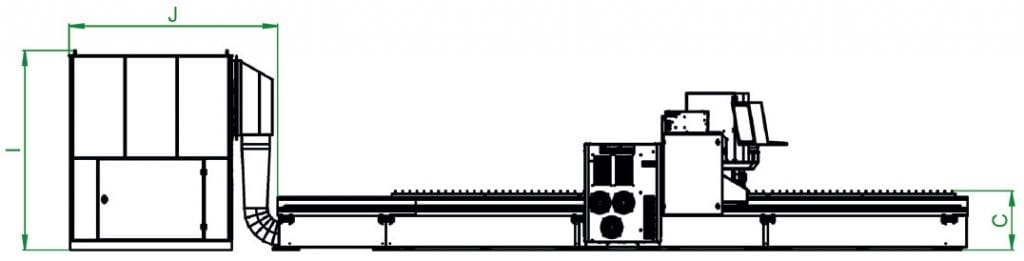

Technical Parameters of plasma cutting machine






P-Series Plasma Cutting

Cutting Width

Cutting Length

Table Height


Height


Width


Length
Width (Including Power Unit)
Length (Including Filter)

Filter Height

Filter Length
ABCDEFGHIJ
mmmmmmmmmmmmmmmmmmmm


A1500
3000150031006502000232045005500650022002000
4000150041006502000232055006000750022002000
60001500610065020002320750060001000022002500
A200060002000610065020002820750065001000022002500
HYPERTHERM CUTTING HEAD

High productivity, low operating cost, high cutting speed, long life and exceptional cutting quality. Offers wide range cutting from very thin sheet thickness to very thick sheet thickness.

CNC CONTROL UNIT ESA / HYPERTHERM

Thanks to its easy operation, plasma processes can be efficiently and easily managed.

HYPERTHERM POWER SOURCE

Efficiency, fast cutting, fast processing cycle provides high reliability with easy replacement of consumables. Advantages: Superior cutting quality, minimum operating cost and maximum productivity.

RACK PINION AND LINEAR GUIDING

High precision cutting achieved with dual guiding system Rack Pinion and Linear Guides.

CABLE TRAY CARRIERS

Cable channels in accordance with CE standards, silent operation, durability, With its anti-friction and non-breaking properties usage life is much longer.

PARTIAL PNEUMATIC SUCTION SYSTEM

With the PLC software, pneumaticly controlled hatches which are only at the cutting area are opened. With this way more powerful suction with less energy consumption can be achieved.

EDGE® Connect, Hypertherm’s newest Computer Numeric Control (CNC) plat- form, delivers unmatched reliability, powerful embedded capabilities, and a high level of customizability. Based on our proprietary, industry-leading Pho- enix® CNC platform, the system offers new, advanced software features – inc- luding ProNest® CNC automatic nesting delivering SureCutTM technology – along with enhanced hardware. For easy set up, changes, and upgrades, EDGE Connect CNCs can be configu- red in the field with software specific to the cutting machine application. The easy-to-use system combines advanced cutting performance with an intuitive graphical interface, and supports plasma, oxyfuel, and waterjet applications.

  • • With Patented CutPro® Wizard, even new operators can be cutting production parts in less than five minutes
  • On-screen Software Operator’s Console (Soft OpCon) allows easy setup and operation of cutting station and manual motion
  • Integrated communications with plasma and torch height control systems deliver automated and expert control using installed factory or custom cut charts
  • Custom cut charts can be created and controlled in the part program or made available to the CutPro Wizard •
  • EDGE Connect runs on the Windows® 10 Enterprise operating system

HYPERTHERM EDGE CONNECT CNC

CAD / CAM SOFTWARES

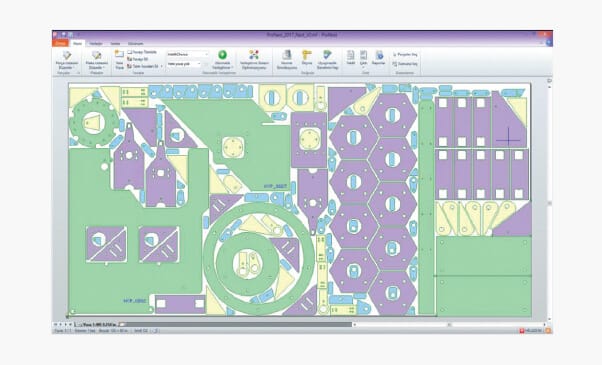

ProNest® LT (formerly known as TurboNest®) is a powerful CAD/CAM part nesting software designed for light industrial, mechanized cutting in production environments. It provides a single software solution for all your conventional plasma and oxyfuel cutting machines.

• Part design and development

– Integrated 2D CAD program to create and edit CAD files

– Variable Shape Parts library to develop common parts from templates

• CAD/CAM import and conversion

– Import CAD files (industry-standard file formats)

– Import PDF

– Raster to vector converts static images to CAD

– Automatic CAD file correction and error notification

– Automatic spline/ellipse smoothing and reduction

– Separate multiple parts from a single CAD file

– Automatic mapping of CAD layers to processes (cut, mark, etc.)

• Fast, easy job setup

• SureCut™ technology and built-in process enterprise

• Interactive manual nesting

• Detailed reporting

• Simplified costing

• Choice of output

• Post-processor with NC output

– DXF output

• Offers perfect nesting efficiency for automatic or manual part nesting

• Copy, move, reverse, turn alignment manual, semi-automatic, functions geometrical working

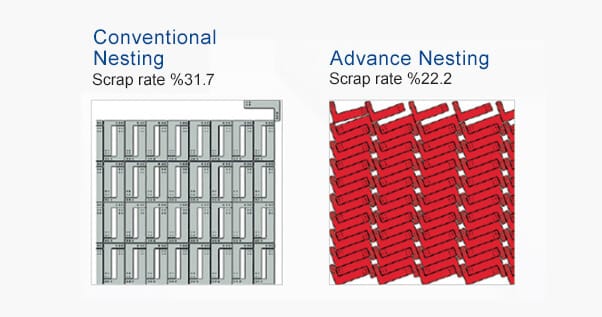

• Advanced nesting algorithm optimizes the use of a material, minimizing scrap.

• Can work with standard sheets stocked in the warehouse and/or with scraps obtained from previous processes.

• Automatic cutting path determination

• Time/Cost analyses

• Simulation before actual cutting

• Smart Part importer / Exporter from CAD system, DXF, DWG, IGES, Step etc file formats

• Part Drawing module, call parts, automatic or manual nesting, machining, CNC codes generates, Sheet metal stock searching etc

• Various input/output methods, film burning, specialized piercing, fast laser, micro-joints, head direction management, edge binding

• Complicated functions and program

HEAD OPTIONS

BEVELING HEAD (5 AXES)

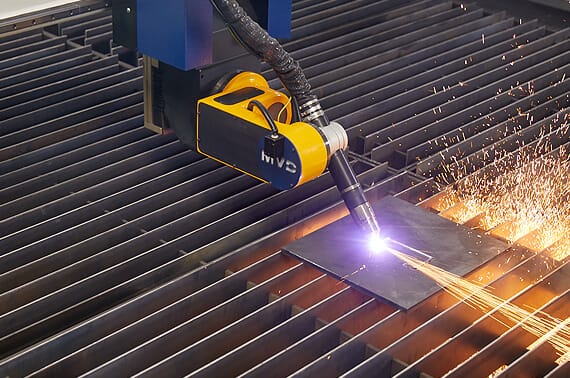

KRRASS 5 Axes beveling head is designed for 3D and angle cutting. Up to 45° all the angles are calculated automaticly and created so the operator can input the desired angles as needed. Also the straight vertical cuts can be done, reduced maintenance due to height detection sensor.

• Automatic angle adjustment
• Time saving – short setting time
• Excellent cutting and contouring
• Low production costs
• Offers bolt hole quality

OXY CUTTING

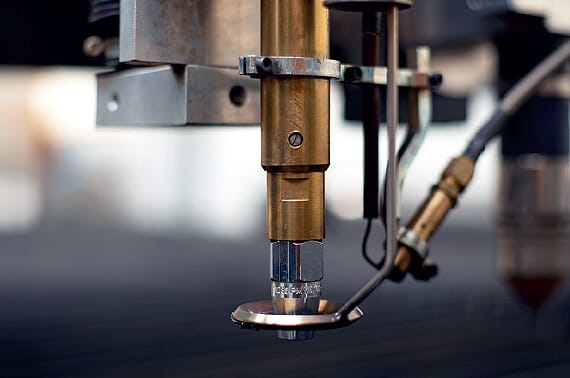

KRRASS CNC Controlled plasma cutting machines also provide oxygen cutting capability. With our oxygen head equipped machines up to 200 mm cut can be done and this limit can be increased with special design options.

Plasma Cutting

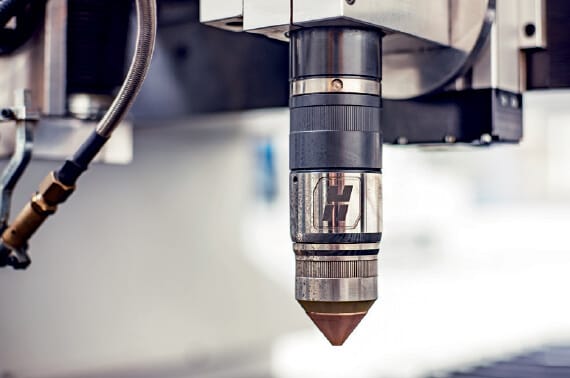

The KRRASS Plasma series uses Hypertherm’s patented technologies for quality, more power, more precision and more consistent cutting.
Power Pierce: Repels molten metal during piercing allowing strong production piercing
Long Life: Gas intake and flow rate is adjusted under contol.
High Definition: Aligns and focuses the arc, superior quality and consistent cutting
High Definition: Delivers increased arc density and cut speeds while maintaining arc stability and smoother cut edges.

• Increases number of cuts per hour
• Decreases cost per cut

DUST COLLECTOR FILTER SYSTEM

During plasma cutting operations filter is needed for extraction of smoke, dust and emissions. Creates a more better working environment for everybody, specially for plasma operators. Shipped in one piece by means of its specially defined dimensions, this way all accessories and pre-set and ready to startup. Particles carried by the dirty air entering through the side walls of filter cabin are held by means of a crashing plate. In this section, speed of the air is decreased and desired filtering rates are obtained. In addition, sparks that may touch the filter and big and corrosive particles are directed to the collecting bucket underneath the bunker. Thus, life of the filters is increased. Other dusts and smokes that constitute the polluted air are held by BIA-approved filter materials tested according to DIN EN 60335-2-69 appendix AAand selected according to the application. Dusts held are automatically cleaned thanks to jet pulse cleaning system. Cleaned air is absorbed from the cabin by means of a fan and released to the environment desired.
