Tube Fiber Laser Cutting Machine
KRRASS Flatbed Tube Fiber Laser Cutting Machine 1000W-6000W.
CNC Control System
Integrated bed with sheet production line, self-sufficiency, shorter delivery Various working size optional
Auto Oil-filling
Intelligent system for auto oil filling oil cut-off avoided
Cost-Effective
Low waste of raw materisals Low investment with short payoff period
The Pipe Clamping Range is Wide
The pipe clamping range is wide,Round tube φ10-φ10, and Square tube side length is 10 * 10mm-220mm * 220mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe, etc.
Integrated Machine Bed
Pneumatic roller support

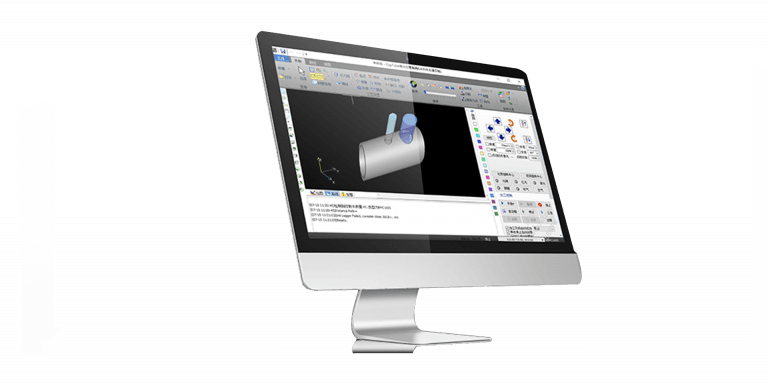

Tubepro tube cutting software
RAS-6000 affordable metal tube laser cutter is equipped with FSCUT3000S pipe cutting system, which suppors high-precision and high-efficiency cutting of square pipes, round pipes, racetrack-shaped and oval-shaped stretched pipes, as well as angle steel and channel steel.
Wide Processing Range, Can Cut a Variety of Tubes
Double Pneumatic Chucks, Ultra-short Tailing
The front and rear chucks are featured by automatic centering and dual-driven rotation, keeping them synchronous, therein, front chuck is full-stroke and cutting tailing is further shortened to 50mm by front chuck avoidance cutting.

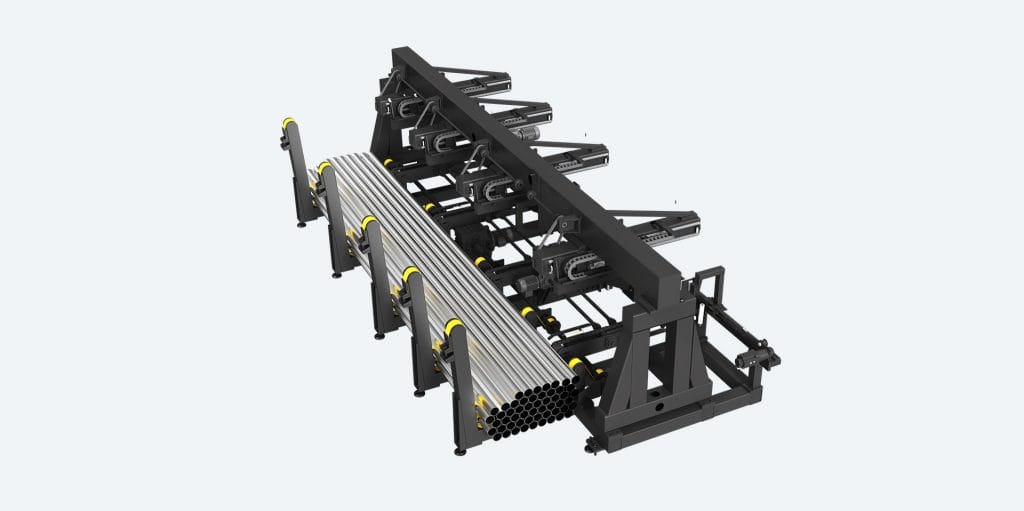

Automatic Loading Equipment(Optional)
- Tubes are usually loaded to material laying area by transmission mechanism of which limiting device can make tubes in order.
- Tubes are clamped by 6 loading rollers that need no reset in a loading cycle, resulting in less waiting time and high cutting efficiency.
Application Materials of Tube Laser Cutter
RAS-6000 laser pipe cutting machine can cut carbon steel, stainless steel, aluminum alloy, galvanized sheet, titanium alloy, manganese alloy, etc.It is widely used in metal tube processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing,elevator manufacturing, petroleum machinery,food machinery, decorative advertisements, etc.
Parameter of Laser Cutting Machine for Steel
| Model | RAS-6000 |
Pipe processing range(mm) | 6000* φ20~220 |
| (Square tube: 20*20~150*150) | |
| Laser Power(kw) | 1.5/2/3/4/6 |
| Maximum Speed(m/min) | 100 |
| Positioning Accuracy(mm) | ±0.05 |
| Repeated Positioning Accuracy(mm) | ±0.02 |
| Maximum Rotational Speed(r/min) | 100 |
| Maximum acceleration(G) | 0.8 |
| Table Maximum Load(KG) | 150 |
What is the Maximum Cutting Thickness？
| Material | 1KW | 1.5KW | 2KW | 3KW | 4KW | 6KW | 8kw | 12000W |
| Carbon Steel(mm) | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-20 | 0.4-25 | 0.4-25 | 0.4-25 | 0.4-45 |
| Stainless Steel(mm) | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 | 0.4-12 | 0.4-20 | 0.4-28 | 0.4-40 |
| Aluminum (mm) | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-22 |
| Brass (mm) | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-6 | 0.4-8 | 0.4-14 | 0.4-16 | 0.4-20 |
