Tube&Plate Fiber Laser Cutting Machine

KRRASS Flate bed Tube Fiber Laser Cutting Machine 1000W-6000W.

RAS-B fiber laser cutting machine is specially designed for high-speed, high-quality cutting of various types of sheet metal and cutting of various cross-section metal pipes and profiles. This series of machines is specially designed for small and medium enterprises. Reliable components from the world's leading companies, excellent design solutions and assembly quality make this model a sharp contrast with competitors manufacturers of similar equipment. The model can be equipped with a laser source with a power of 500 W to 6 KW(Raycus / IPG /Max/other brands).

CNC Control System

High Precision Welding Bed

Integrated bed with sheet production line, self-sufficiency, shorter delivery Various working size optional

Auto Oil-filling

Intelligent system for auto oil filling oil cut-off avoided

Cost-Effective

Low waste of raw materisals Low investment with short payoff period

The Pipe Clamping Range is Wide

The pipe clamping range is wide,Round tube φ10-φ10, and Square tube side length is 10 * 10mm-220mm * 220mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe, etc.

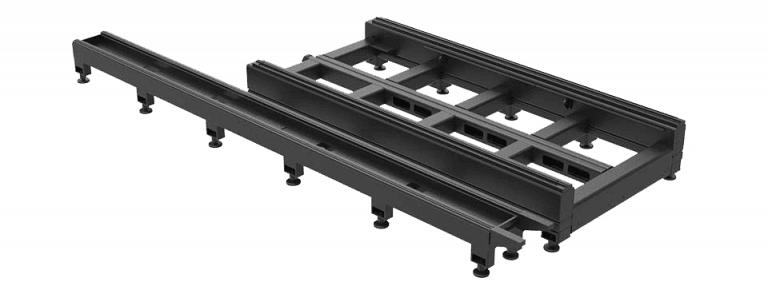

Integrated Machine Bed

The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The compact spacing of 650mm ensures the agility of the chuck and the stability during high-speed driving.

Pneumatic roller support

Fixing the pipe effectively solves the deformation problem in the cutting operation of the long pipe.

Tubepro tube cutting and Plate Cutter software

RAS-B affordable metal tube laser cutter is equipped with FSCUT3000S pipe cutting system and FSCUT2000 Plate Cutting System, which suppors high-precision and high-efficiency cutting of square pipes, round pipes, racetrack-shaped and oval-shaped stretched pipes, as well as angle steel and channel steel.

Wide Processing Range, Can Cut a Variety of Tubes

It can process a wide range of tube sizes: round tube diameter ø15mm-ø220mm, square tube side length 15*15-150*150mm; With a 3D laser cutting head, it can easily cut H steel, I-beam, angle steel, channel steel and other profiles, as well as drop-shaped and concave shaped tubes.

Double Pneumatic Chucks, Ultra-short Tailing

The front and rear chucks are featured by automatic centering and dual-driven rotation, keeping them synchronous, therein, front chuck is full-stroke and cutting tailing is further shortened to 50mm by front chuck avoidance cutting.

Automatic Loading Equipment(Optional)

  • Tubes are usually loaded to material laying area by transmission mechanism of which limiting device can make tubes in order.
  •  Tubes are clamped by 6 loading rollers that need no reset in a loading cycle, resulting in less waiting time and high cutting efficiency.
Application Materials of Tube Laser Cutter​​​​​​​

RAS-6000 laser pipe cutting machine can cut carbon steel, stainless steel, aluminum alloy, galvanized sheet, titanium alloy, manganese alloy, etc.It is widely used in metal tube processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing,elevator manufacturing, petroleum machinery,food machinery, decorative advertisements, etc.

Parameter of Laser Cutting Machine for Steel
               Model                      RAS-3015B/RAS-4015B/RAS-4020B/RAS-6015B/RAS-6020B
Fiber Laser Cutting Machine
Working Area(mm)3050 * 1530/4050 * 1530 /4050*2030/ 6050* 1530/6050* 2030
Laser Power(kw)1KW,1.5KW,2KW,3KW,4KW,6KW
Round Tube Processing Dim.Φ20-Φ219mm
Square Tube Processing Dim.20*20mm-150*150mm
Max Single Tube Loading Weight100kg
Max Bundle Loading Weight1000kg
Chuck Rotating Speed90r/min
Max. Moving Speed90m/min
Max. Acc. Speed0.8G
Positioning Accuracy±0.05mm/m
Repositioning Accuracy±0.03mm
Maximum Speed(m/min)80
X/Y Axis positioning accuracy(mm/m)±0.05
X/Y Axis repeated positioning accuracy(mm)± 0.02
What is the Maximum Cutting Thickness?
Material1KW1.5KW2KW3KW4KW6KW8kw12000W
Carbon Steel(mm)0.4-120.4-160.4-180.4-200.4-250.4-250.4-250.4-45
Stainless Steel(mm)0.4-50.4-60.4-80.4-120.4-120.4-200.4-280.4-40
Aluminum (mm)0.4-30.4-50.4-60.4-80.4-120.4-160.4-180.4-22
Brass (mm)0.4-30.4-50.4-60.4-60.4-80.4-140.4-160.4-20
